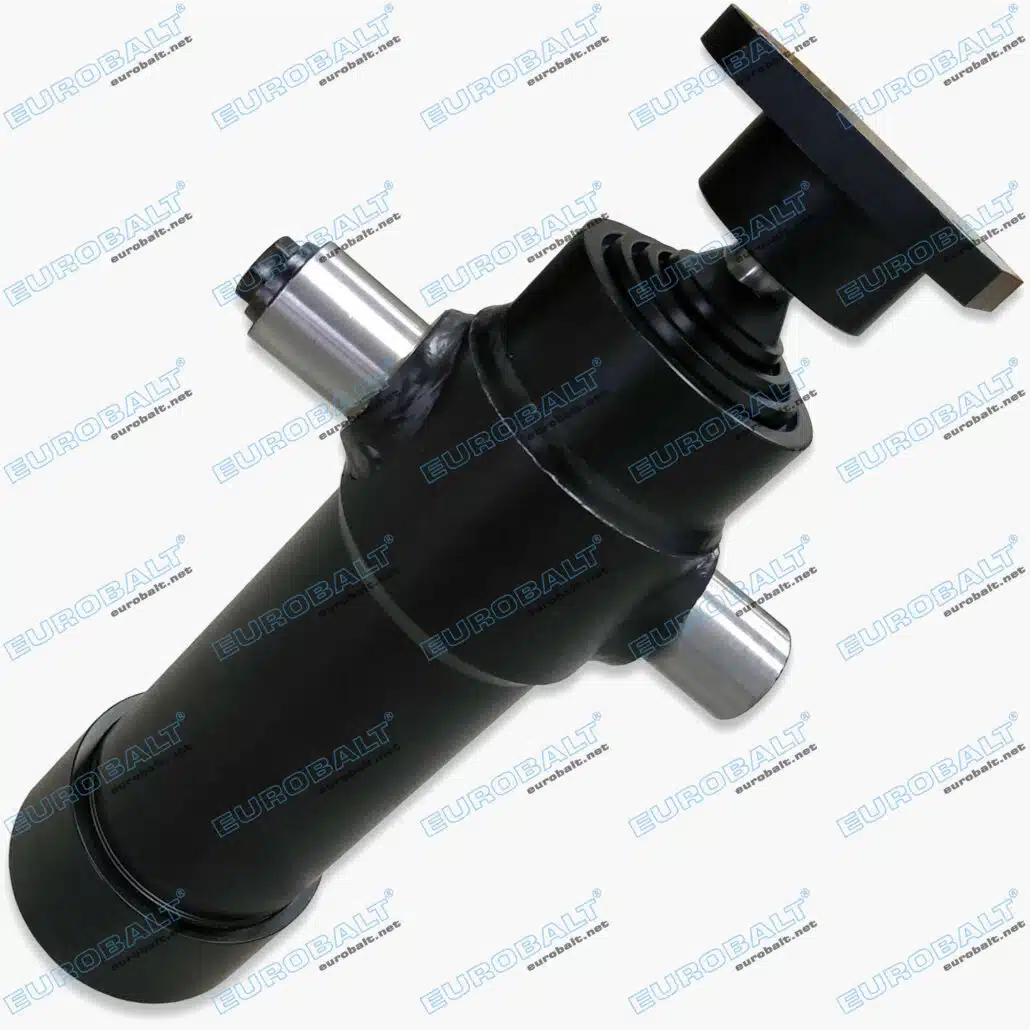

Telescopic tree-stage cylinder HC000913

396,5 mm

Length of the cylinder retracted:

1096 mm

Length of the cylinder extended:

700 mm

Length of the cylinder piston stroke:

18,26 kg

Weight:

18 MPa

Working pressure:

22 MPa

Test pressure:

M22*1,5

Hydraulic connector:

95 mm

Diameter of the cylinder:

2,5 L

Required volume of oil:

0,5 MPa

Start pressure:

0,5 m/s

Piston extension/retraction speed:

-40 to +60

Permissible ambient temperature:

-15 to +80

Permissible oil temperature:

threaded, screwed into the tube

Type of gland:

20 µm

Piston rod chrome-plated:

mineral oil based hydraulic fluid

Type of fluid:
