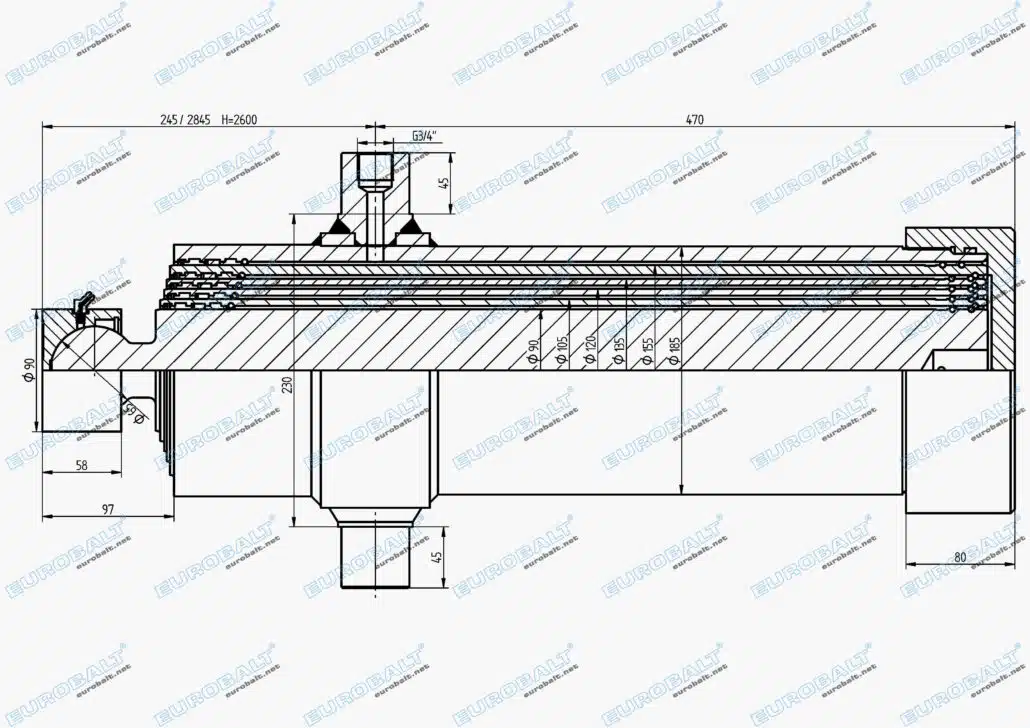

Telescopic five-stage cylinder HC000913

715 mm

Length of the cylinder retracted:

3315 mm

Length of the cylinder extended:

2600 mm

Length of the cylinder piston stroke:

118,69 kg

Weight:

16 MPa

Working pressure:

20 MPa

Test pressure:

185 mm

External width of the cylinder:

G3/4" female thread

Hydraulic connector:

0,5 MPa

Start pressure:

0,5 m/s

Piston extension/retraction speed:

-40 to +60

Permissible ambient temperature:

-15 to +80

Permissible oil temperature:

threaded, screwed into the tube

Type of gland:

20 µm

Piston rod chrome-plated:

mineral oil based hydraulic fluid

Type of fluid:
