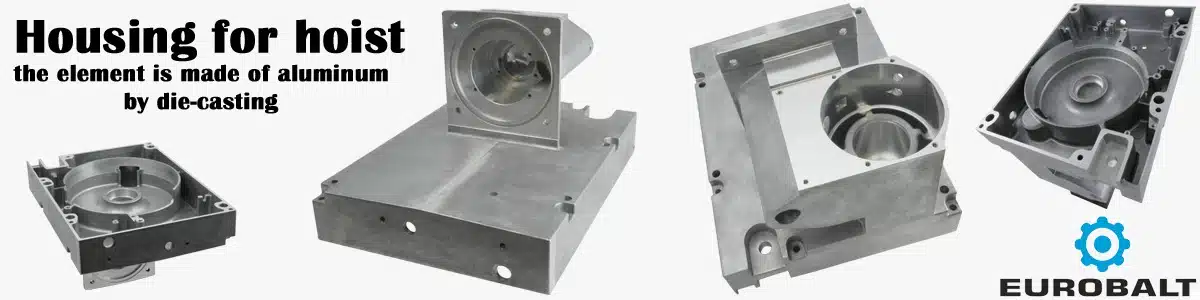

Aluminum housing for hoist

Housing for Hoist of 8.53kg manufactured from aluminum by die casting at Eurobalt Engineering.

At Eurobalt we manufacture and supply housing for hoist used in various types of lifting equipment. Our technical capabilities allow us to die-cast the housing for hoist according to our exact customer requirements.

The table below shows the technical specifications of the manufactured die-casted aluminum housing for hoist.

Materials:EOS Aluminium AlSi10Mg
Weight8.535kg
General Dimensions:392 x 290 x 206 mm
Tolerances:± 0,2 mm
Checking equipment:3D co‐ordinate CNC measuring machine, etchardness testing
Quality system:EN/ISO 9001:2008

Hoist is a device for lifting or lowering a load by means of a drum or lift-wheel around which rope or chain wraps. It may be manually operated, electrically or pneumatically driven and may use chain, fiber or wire rope as its lifting medium.

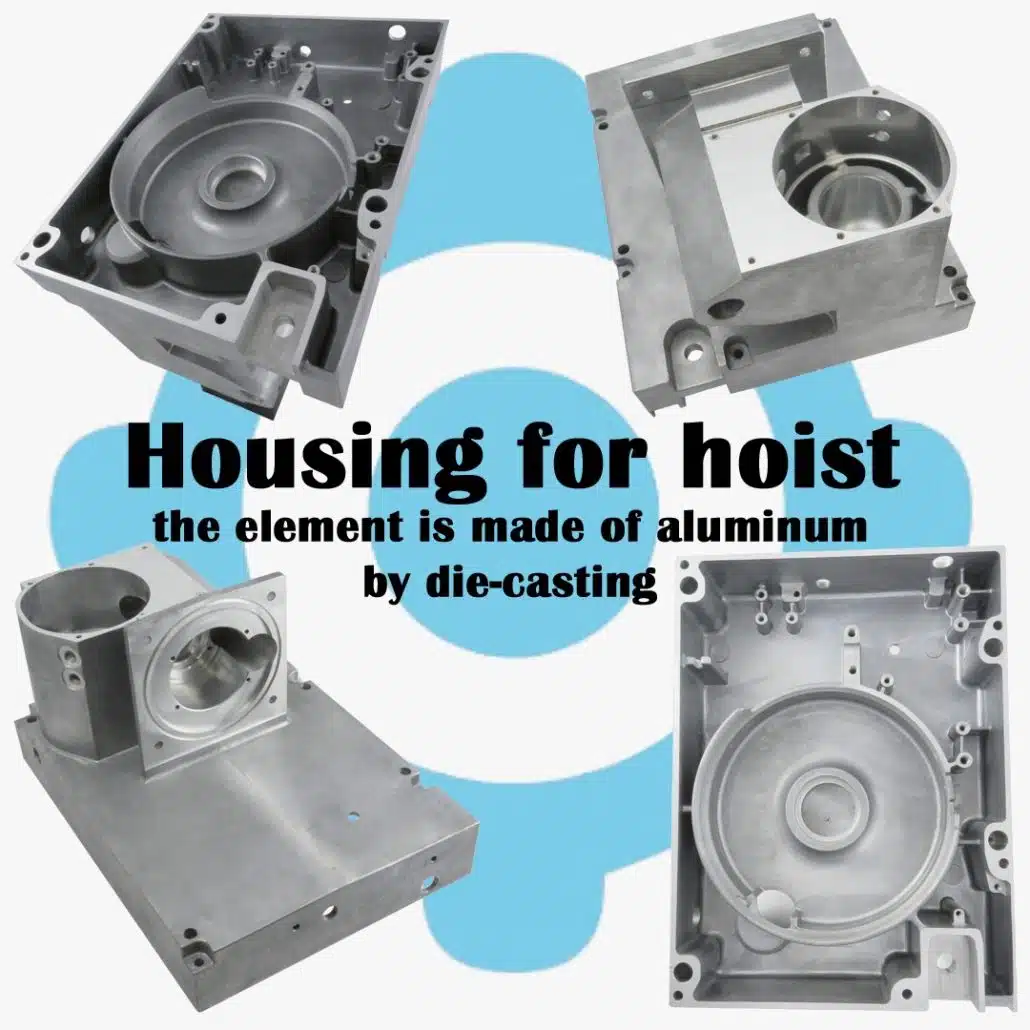

Housing for hoist

Why should you buy from us?

  • High Speed Production- At Eurobalt manufacturing facilities we have pressing machines which press up to 1250 kg and can make the sizes of approximately 392 x 290 x 206).

  • Die-casted housing for hoist comes in various complex shapes within closer tolerances.

  • Little or no machining is required and thousands of identical castings can be produced before additional tooling is required. For the above component, small holes and assembly boarder surfaces were machined for better dimensional accuracy.

  • Good surface finish- Aluminium Die-casted housing for hoist can be produced with smooth surfaces.

  • Inspection- At Eurobalt we inspect the manufactured above part using various methods such as visual inspection, hydrostatic pressure test, magnetic particle inspection, dye penetrant inspection and coin testing and 3D co‐ordinate CNC measuring machine, etc.

  • Fast and reliable delivery operating on markets of Europe, China, CIS and Canada.

Eurobalt group accommodates you with high quality aluminum casted parts. Our products is engineered for durability and longevity. That`s why dependable solutions are designed with extreme accuracy and these highly resistant housing for hoist have a wide variety of tolerances. It is our prime mission to forge a long-lasting partnership with our customers. Tha is why we work hard to supply the best products. Contact us today!
