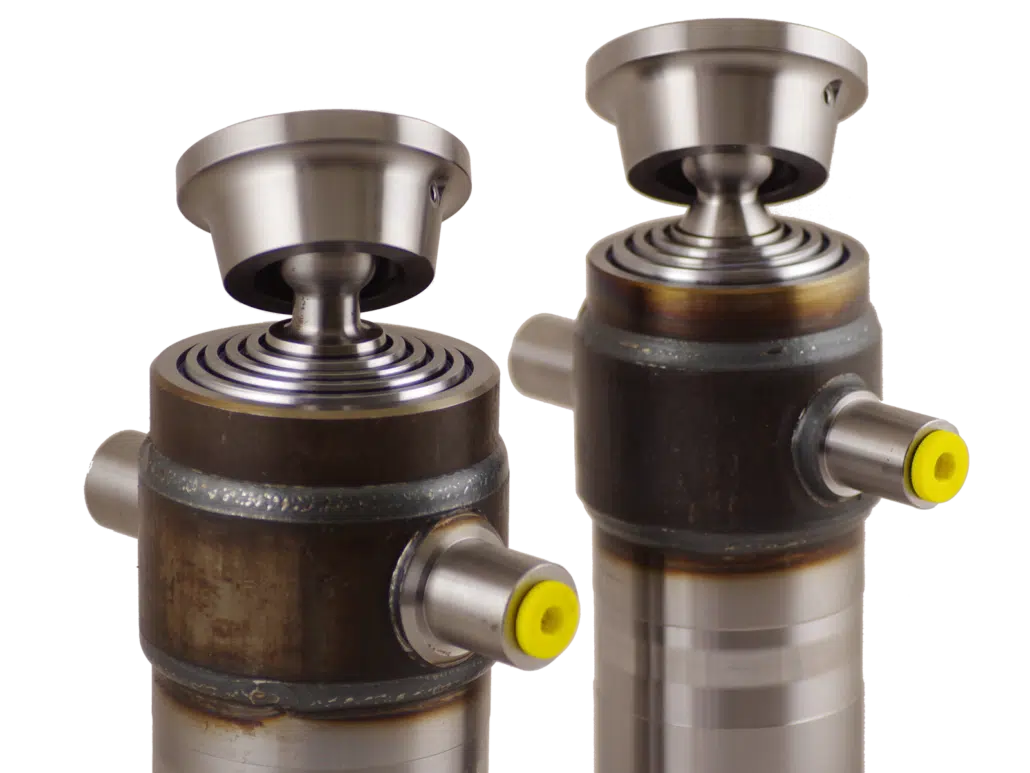

Telescopic Underbody Hydraulic Cylinders for Agricultural and Industrial Use

One of the most prevalent uses of hydraulic cylinder has been in the tipping machines. Whether they are agricultural trailers or more heavy-duty vehicles, most of them use it and have been using it for a long time. There is even a bigger reliance on telescopic underbody cylinders to make the job easier and faster. But easier and faster needs to go hand in hand with quality, something we are offering at an exciting price.

Along with standard double acting cylinders, telescopic underbody cylinders and frontend cylinders have been our primary catalogue for years. Since the inception of Eurobalt Engineering, we wanted to provide a price to quality ratio for underbody cylinders that was unmatched. Moving forward, it has become possible for us to even offer replacement level cylinders for top name brands in the market, at fraction of the cost.

Perfecting 7 Stages of Underbody Telescopic Cylinder

Everything begins with production drawings/3D models. We create the drawings for the clients and then use it to figure out the structural soundness of the cylinder as a whole. It is important for us to have the input of the client but it is even more important that the cylinder is never compromised when working within the limits of the production parameters.

So, we offer clients the option of telescopic underbody cylinders, ranging from 3 stages to 7 stages. Depending upon the space available on the chassis and the tipping height the cylinder needs to achieve, we provide multiple tried and tested stages of hydraulic cylinder. This range of stages has allowed us to be not limited on either side of the size spectrum, our cylinders can be small or big when contracted, depending on the needs of the customer.

Every stage is perfectly created with precise tolerances and additional post production work per needs of the customer. The stages can be simple or we can have them zinc plated, chrome plated, hardened, especially equipped for working in marine and offshore environment. To even reduce human error, out underbody hydraulic cylinders are welded automatically, so as to make sure every one of the 7 stages are perfect cogs in the larger machine.

Customize your own hydraulic cylinder.

Leave us a request for hydraulic cylinder quotation

Customization and Personalization

As you can see on our website, there is number of catalogs for hydraulic cylinders, including telescopic underbody cylinders. Ordering from catalog is convenient for us and the client, the production drawings are already there, sizes can inform on the fit and we provide tipping and buckling information. But not all permutations and combinations are covered in the catalogs, we gladly invite our clients to customize and personalize their cylinders.

While the customization of the size of each tube is obviously customizable, we offer other changes that are either cosmetic or essential to the machine function needs of the customer. From the location of the flanges, the point of connection with the chassis to the location of oil ports and pipes, we accommodate all client needs. There is also the option of additional plating of the tubes, welded seat at the bottom or on an elevated platform, whatever fits the customer’s application the best is how we incorporate customization within our production.

Application of Telescopic Underbody Hydraulic Cylinder

The name itself is a giveaway for the application of telescopic underbody hydraulic cylinder, the cylinders go under the body. So, most prominent use of these types of cylinders can be seen in tippers and trailers for agricultural use. Whether is 1-way, 2-way or 3-way tipping, underbody telescopic cylinders are integrated into the chassis.

But beyond use in agricultural vehicles, telescopic underbody cylinders have also been prominently used in industrial areas. We have seen demand for underbody cylinders in automated mines, there are also heavy-duty vehicles used in drilling and mining industry that employ telescopic underbody hydraulic cylinders. And we have made some variations of those types of cylinders for almost all types of customers and their specific needs.

Eurobalt Engineering Provides Cost Effective/Quality Telescopic Underbody Hydraulic Cylinders

We have been making hydraulic cylinders for nearly a decade now and from assisting other larger manufacturers to now assembling our own cylinders, we have come a long way. Our cylinders now are replacement grade for other established name brands and it is all down to our insistence and concentration in quality. Providing quality telescopic underbody hydraulic cylinder has allowed us to gain a market share in Europe and we can assist you with your needs too. So, call or send us an email and we will figure out a solution for your underbody lifting problem.
