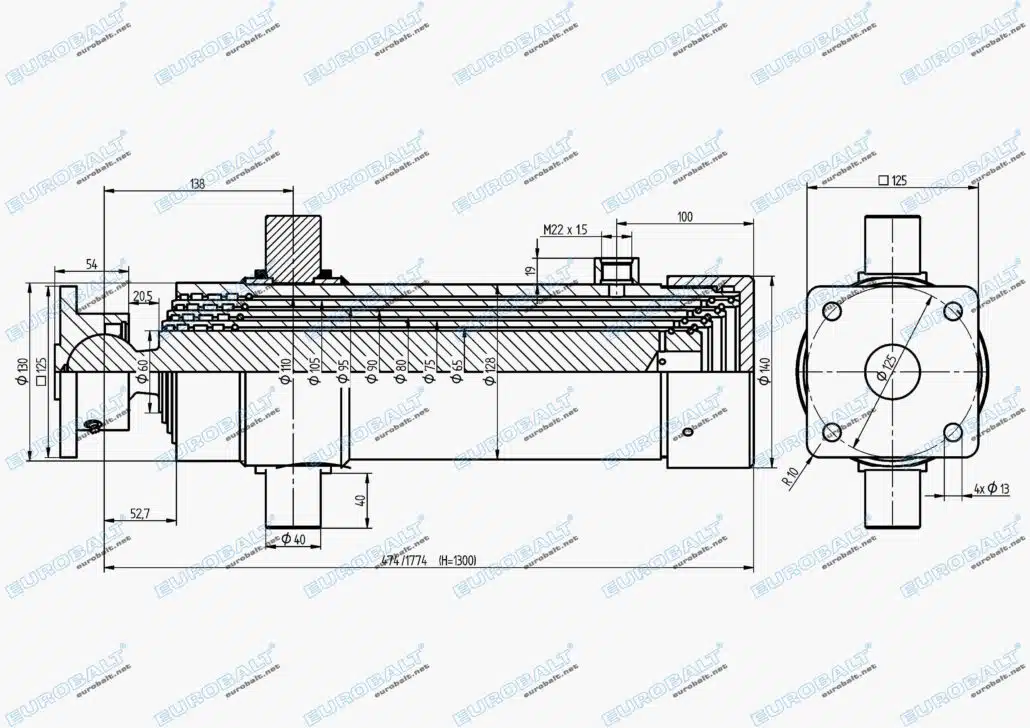

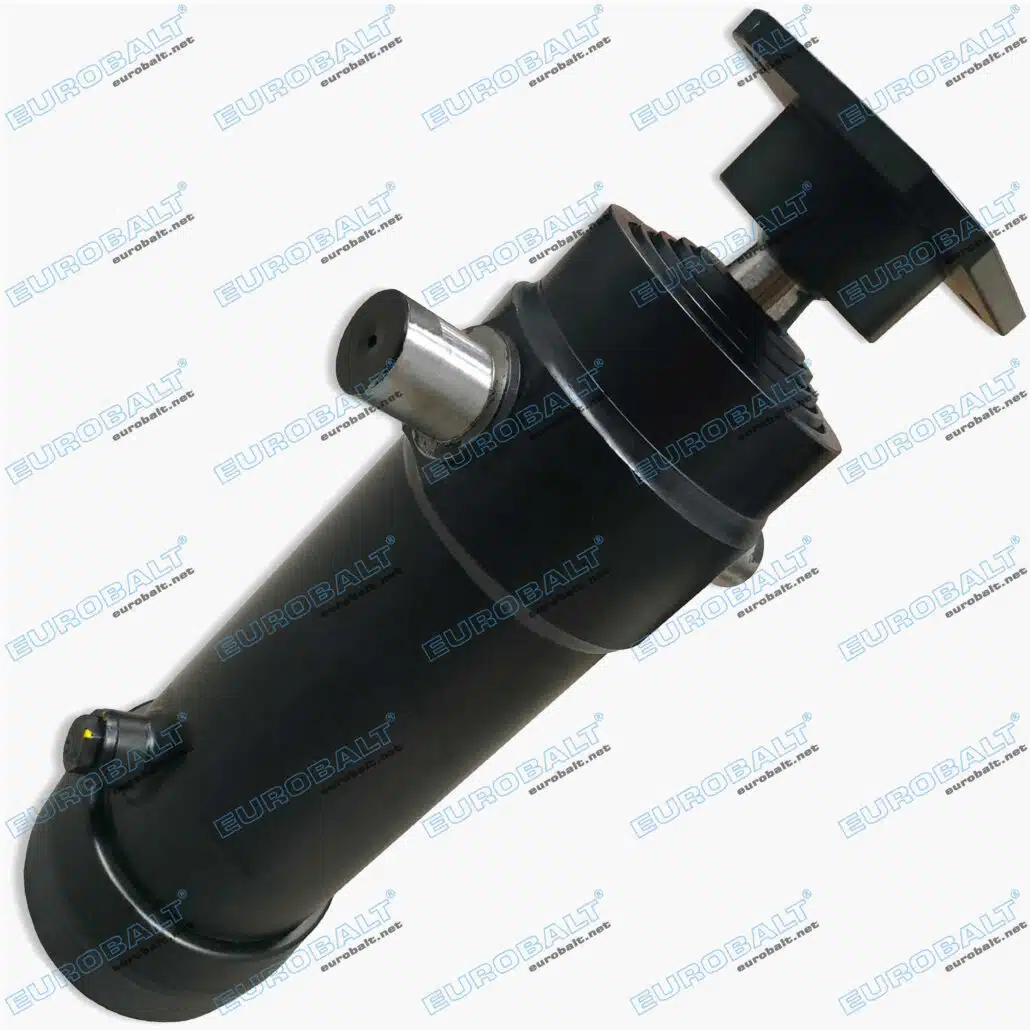

Telescopic four-stage cylinder HC000915
474 mm
Length of the cylinder retracted:
1774 mm
Length of the cylinder extended:
1300 mm
Length of the cylinder piston stroke:
39,68 kg
Weight:
16 MPa
Working pressure:
20 MPa
Test pressure:
128 mm
External width of the cylinder:
M22*1.5 internal thread
Hydraulic connector:
8 L
Required volume of oil:
0,5 MPa
Start pressure:
0,5 m/s
Piston extension/retraction speed:
-40 to +60℃
Permissible ambient temperature:
-15 to +80℃
Permissible oil temperature:
threaded, screwed into the tube
Type of gland:
20 µm
Piston rod chrome-plated:
mineral oil based hydraulic fluid
Type of fluid:
