Solutions for production of Rotary vane pumps
A rotary vane pump is a displacement pump that consists of vanes mounted to an oil-sealed rotor that rotates inside a cavity. Rotary vane pumps are designed so that the stator of the pump is immersed in oil and contains a rotor which is eccentrically mounted.
Design / Operating principle

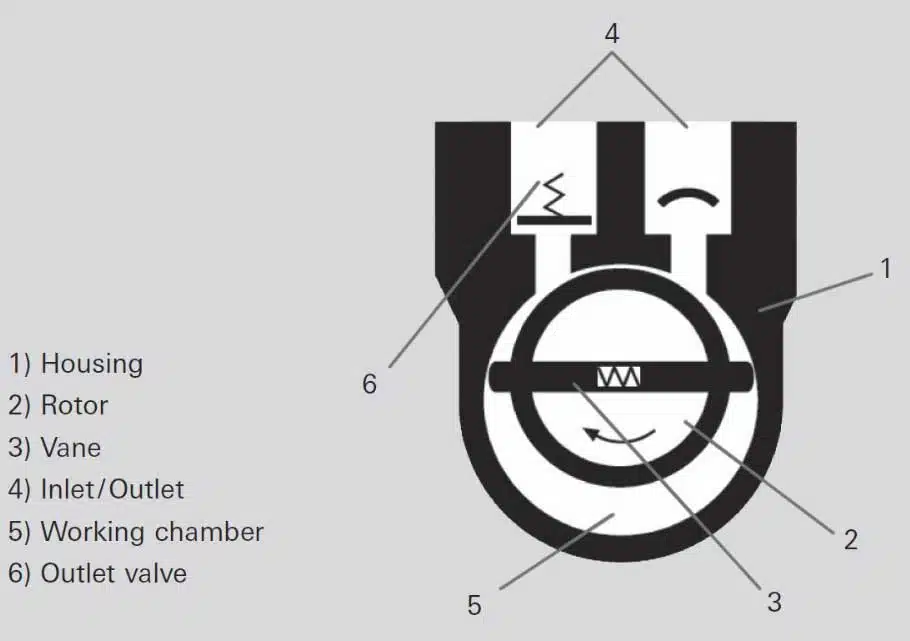

A rotary vane pump works as follows. The pumping system is made up of a housing (1), rotor that is eccentrically installed (2), the vanes (3) that rotates under centrifugal and resilient forces and the inlet and outlet (4). The inlet valve is designed as a vacuum safety valve. The chamber (5) is inside the housing and is restricted by the stator, rotor and the vanes. The vanes and eccentrically installed rotor divide the working chamber into two separate compartments with variable volumes. As the rotor turns, gas flows into the enlarging suction chamber until it is sealed off by the second vane. The enclosed gas is then compressed until the outlet valve opens against atmospheric pressure. The outlet valve is oil-sealed. When the valve is open, a small amount of oil enters the suction chamber and not only lubricates it but also seals the vanes against the housing (stator).
Rotary vane pump Components

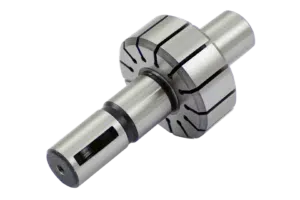

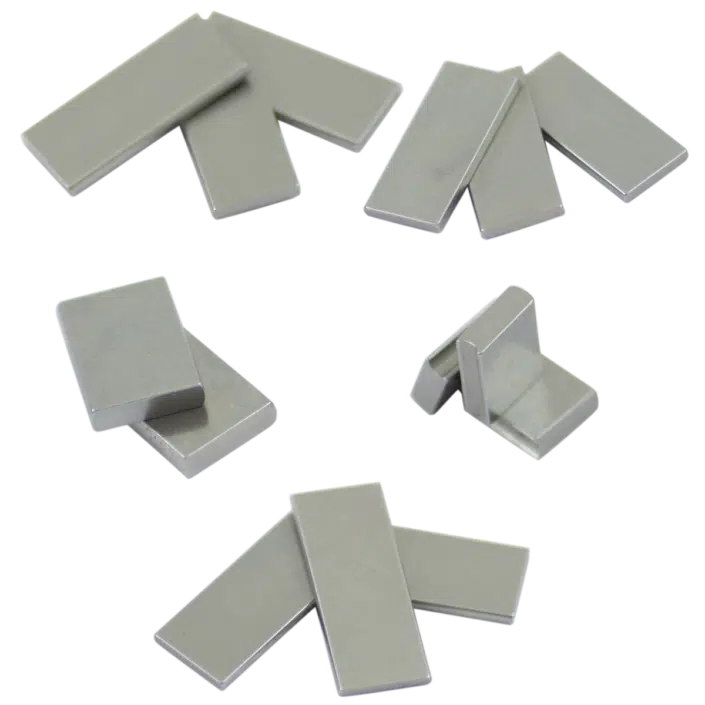

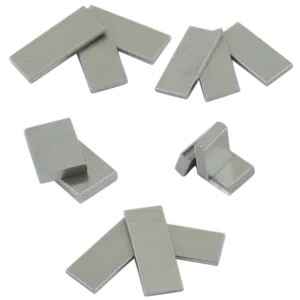

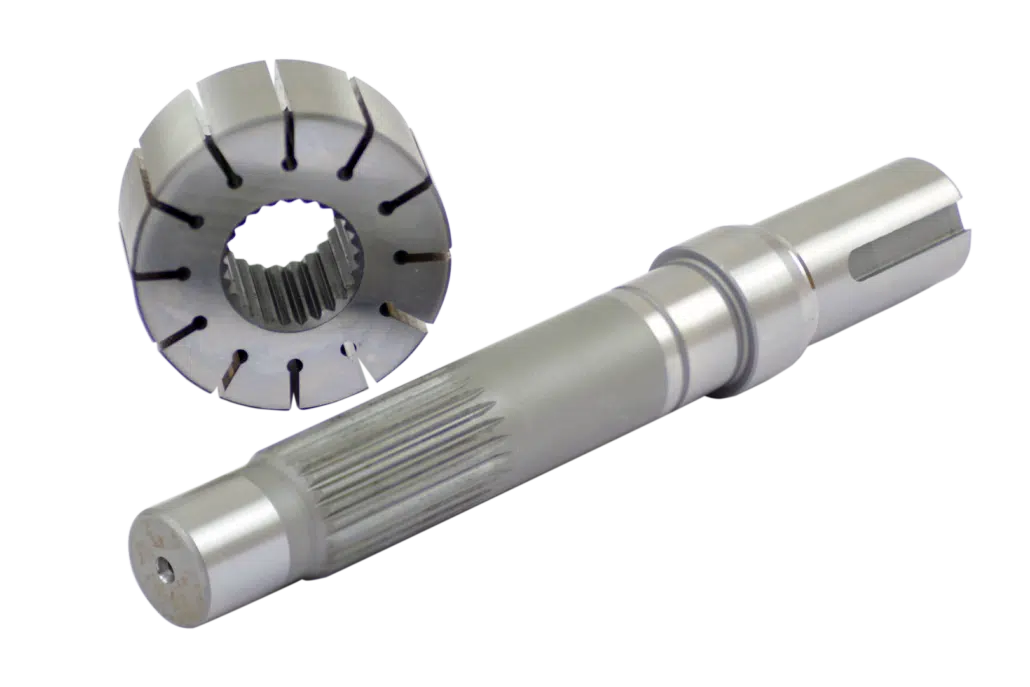

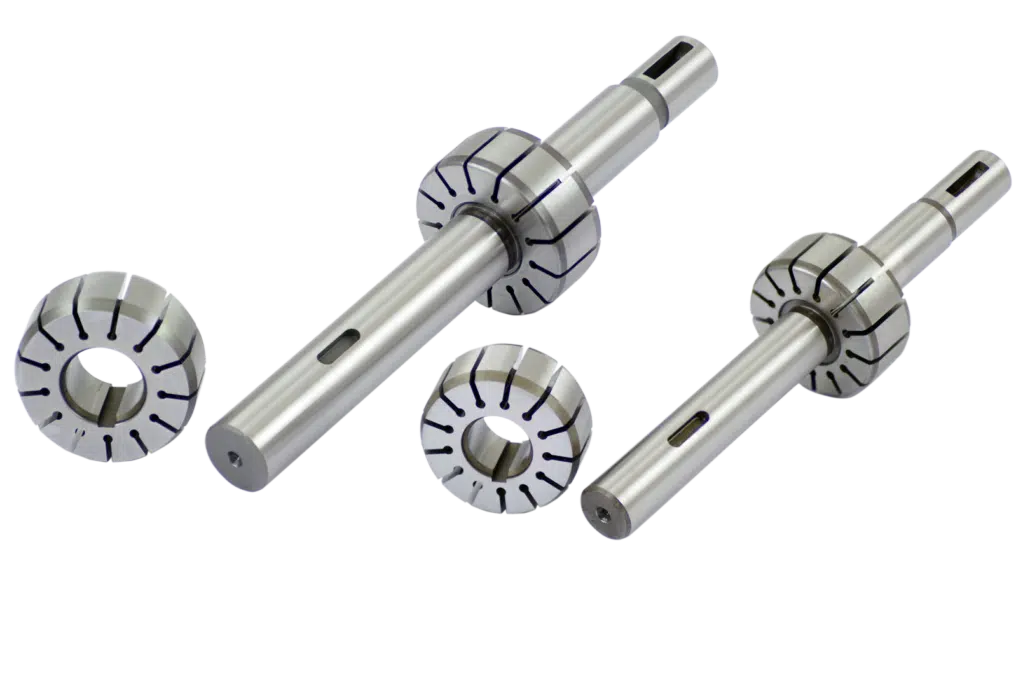

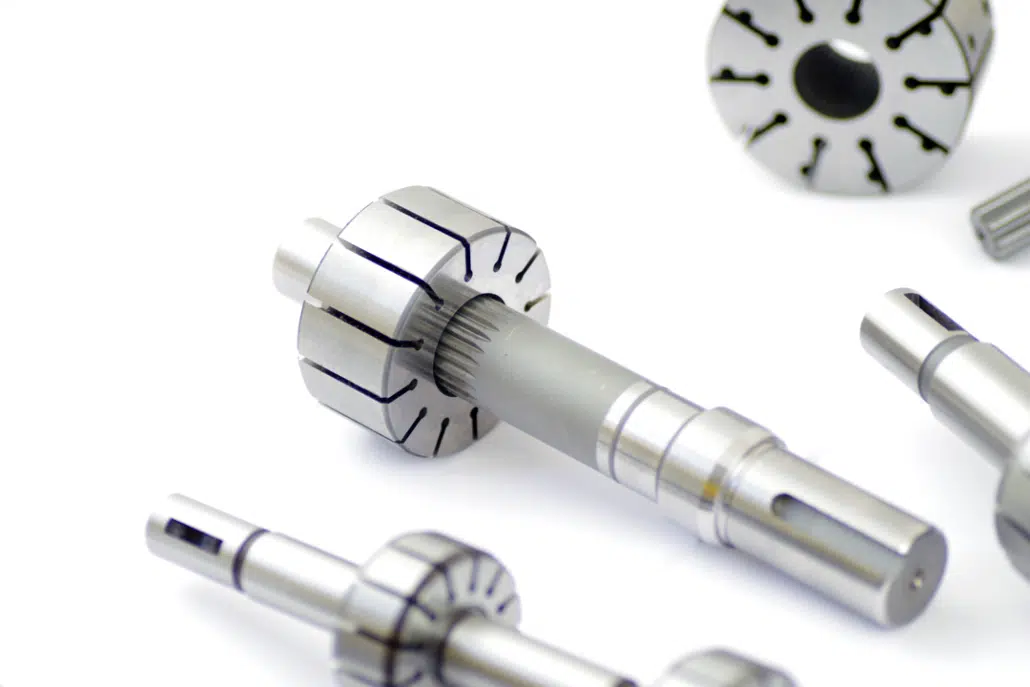

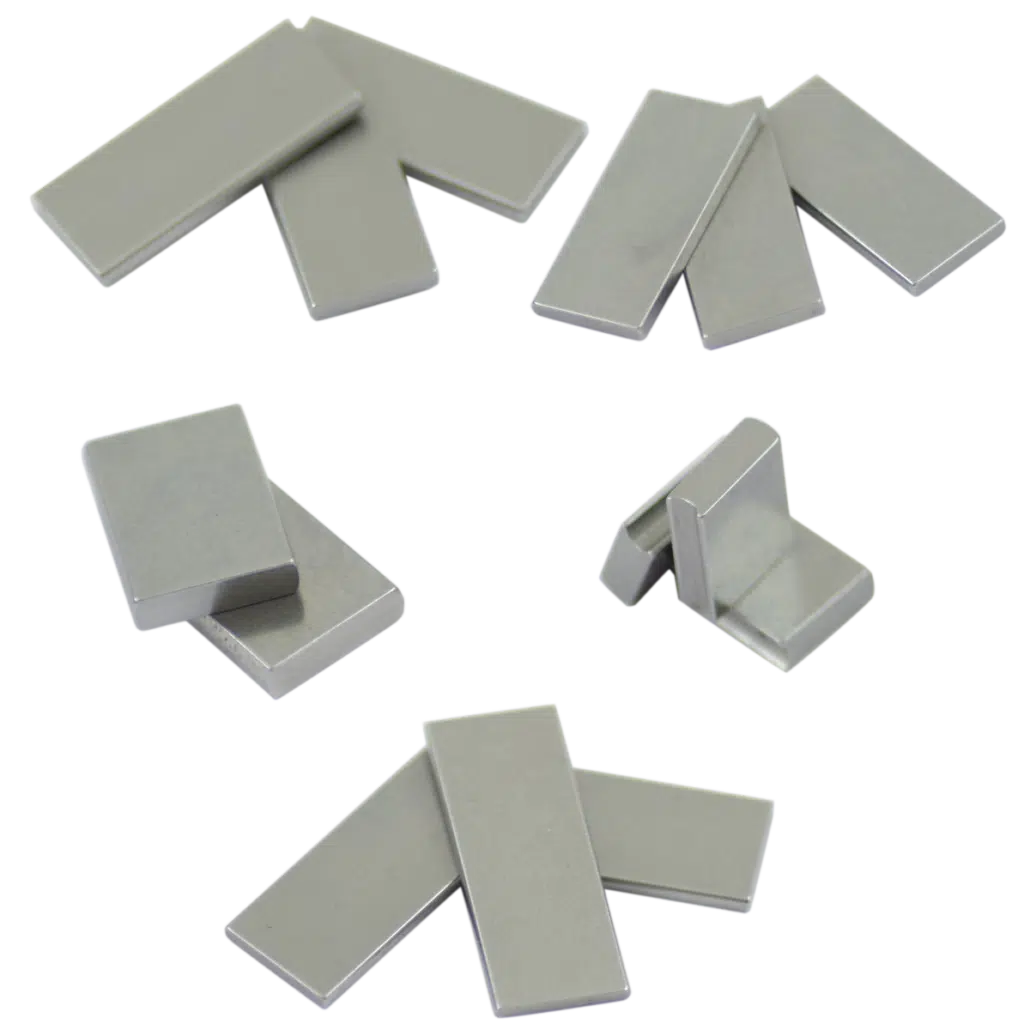

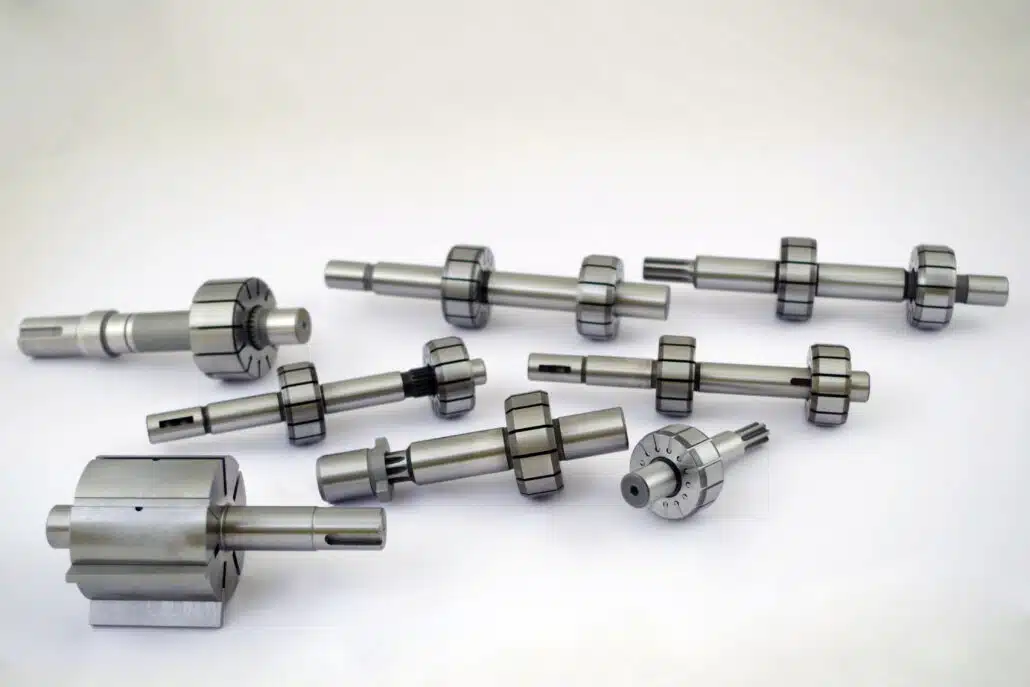

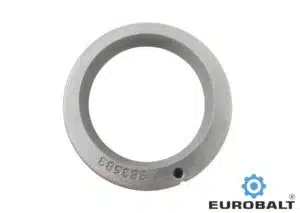

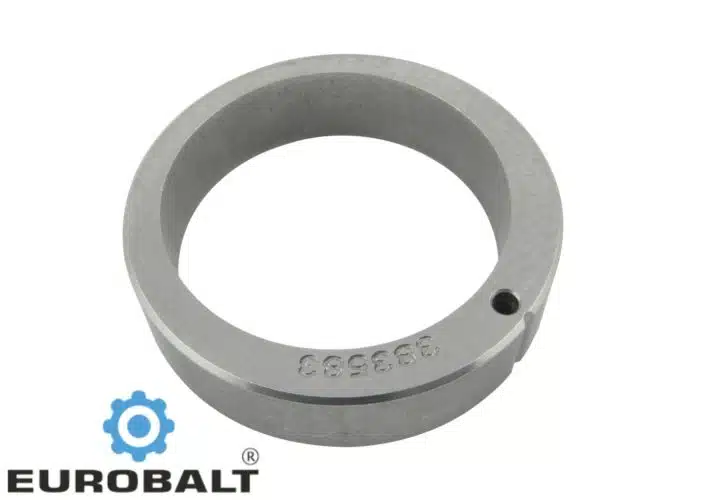

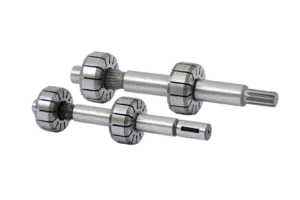

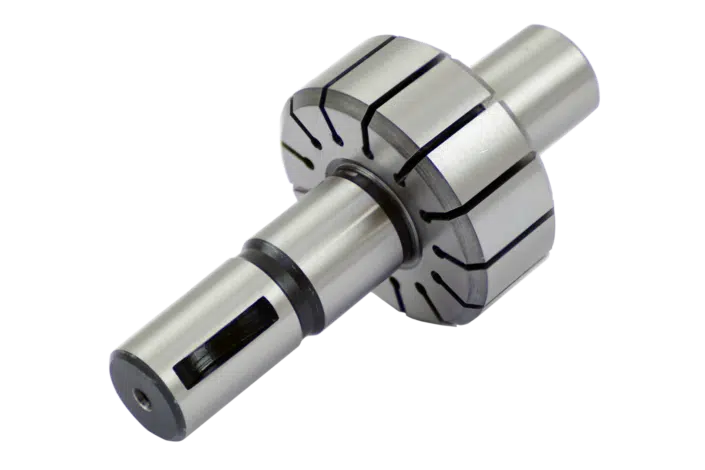

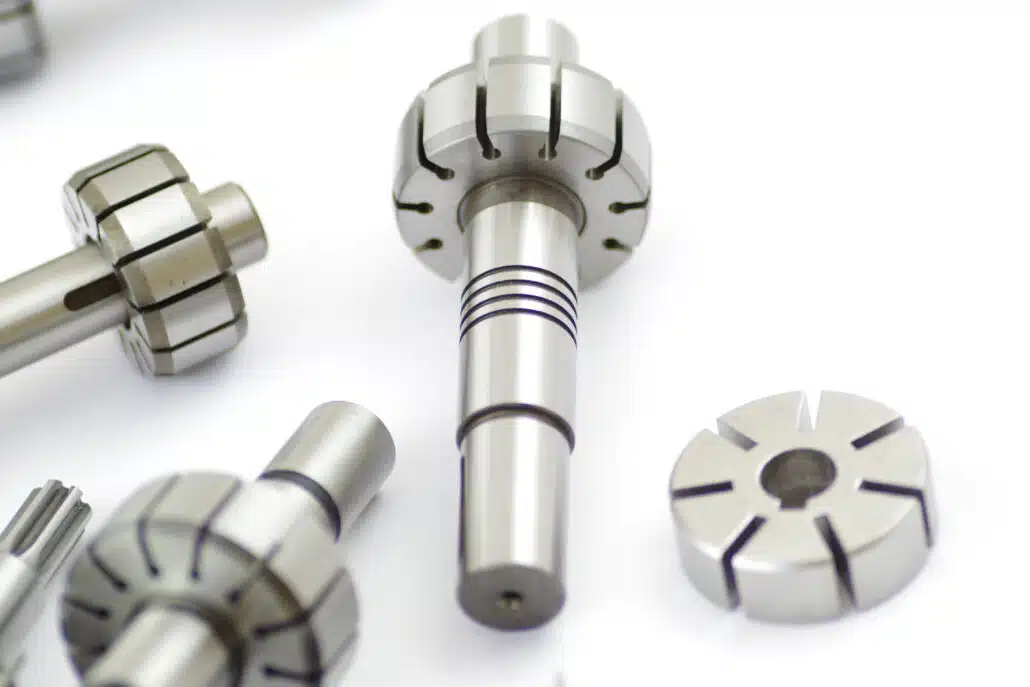

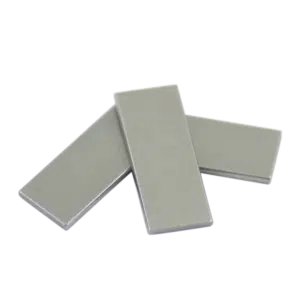

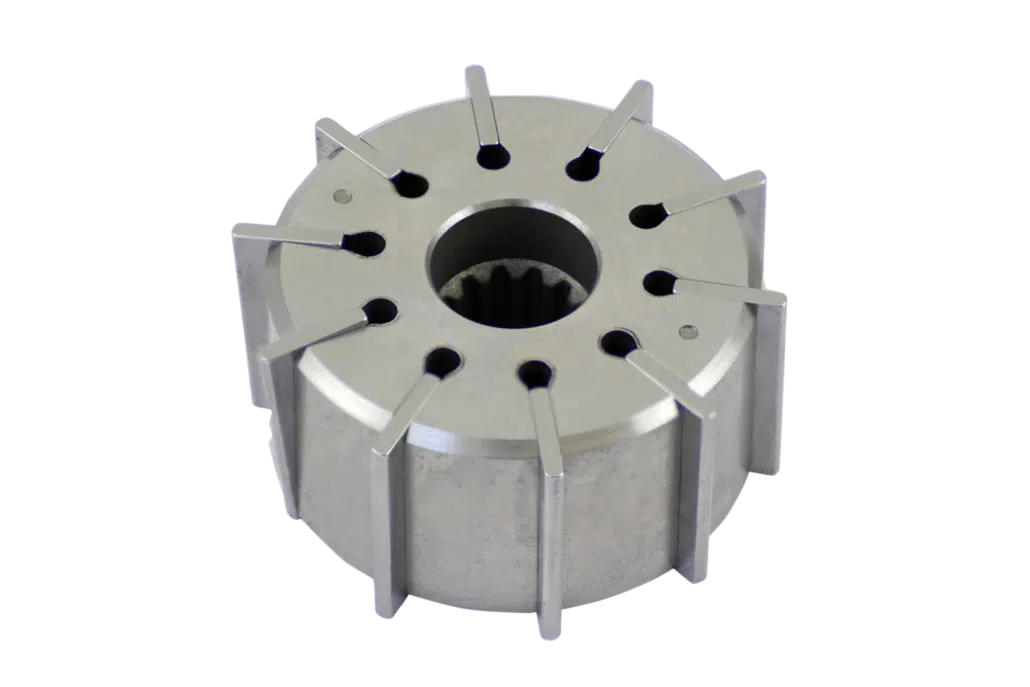

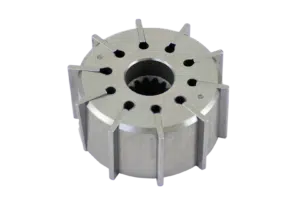

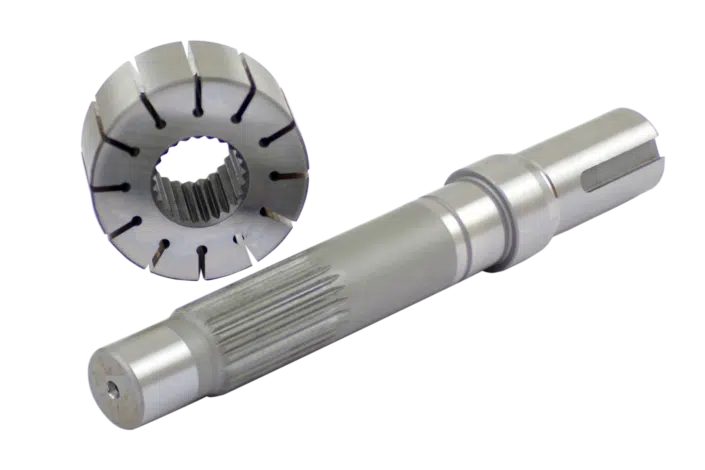

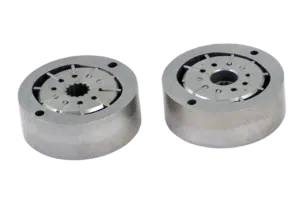

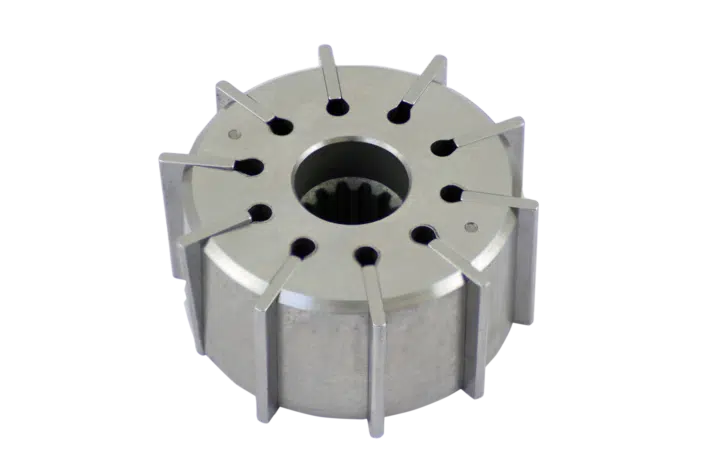

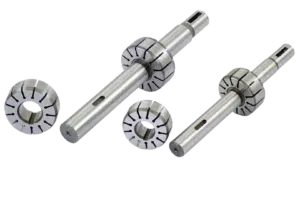

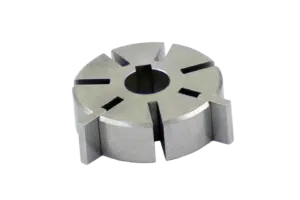

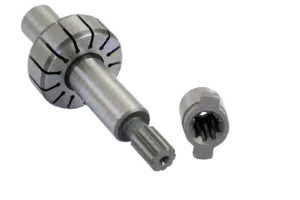

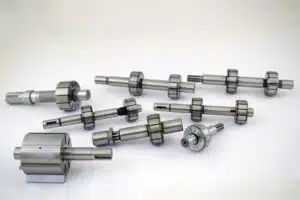

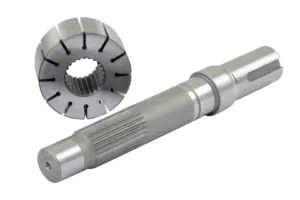

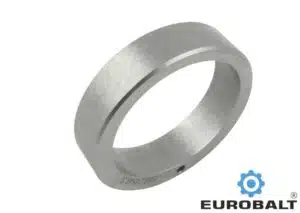

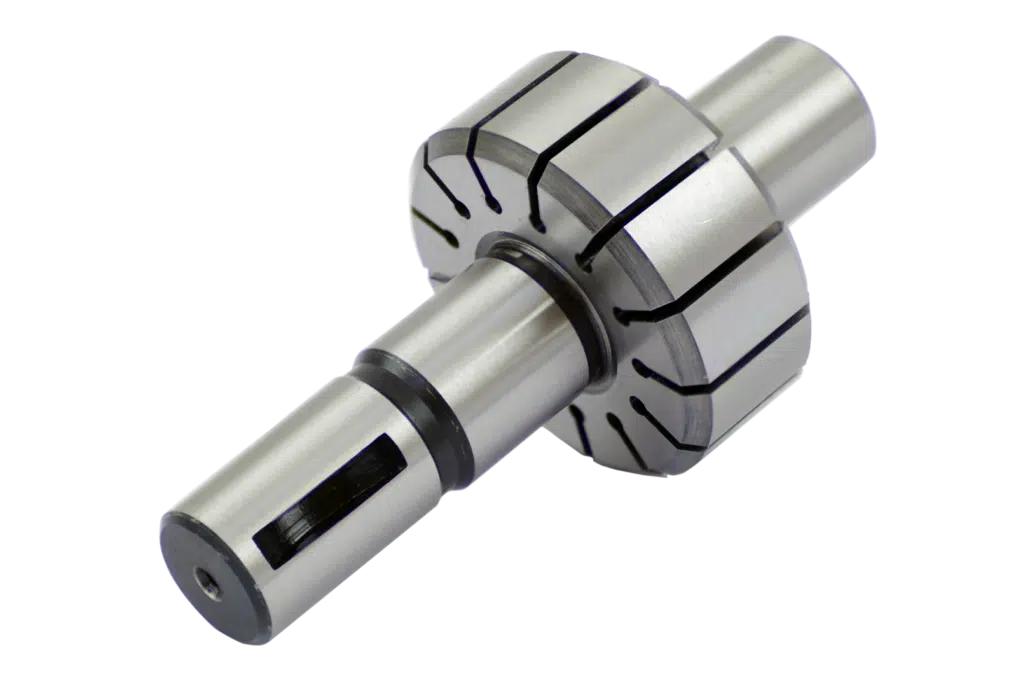

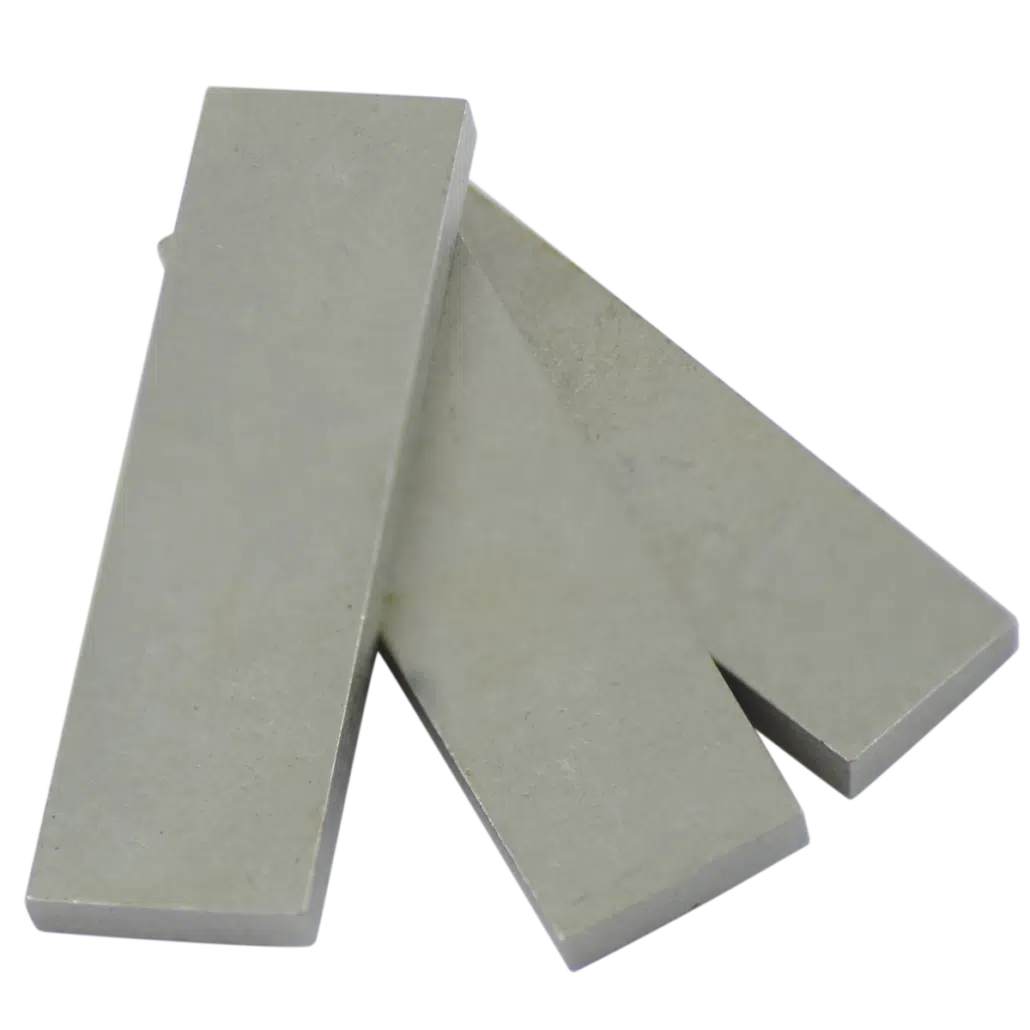

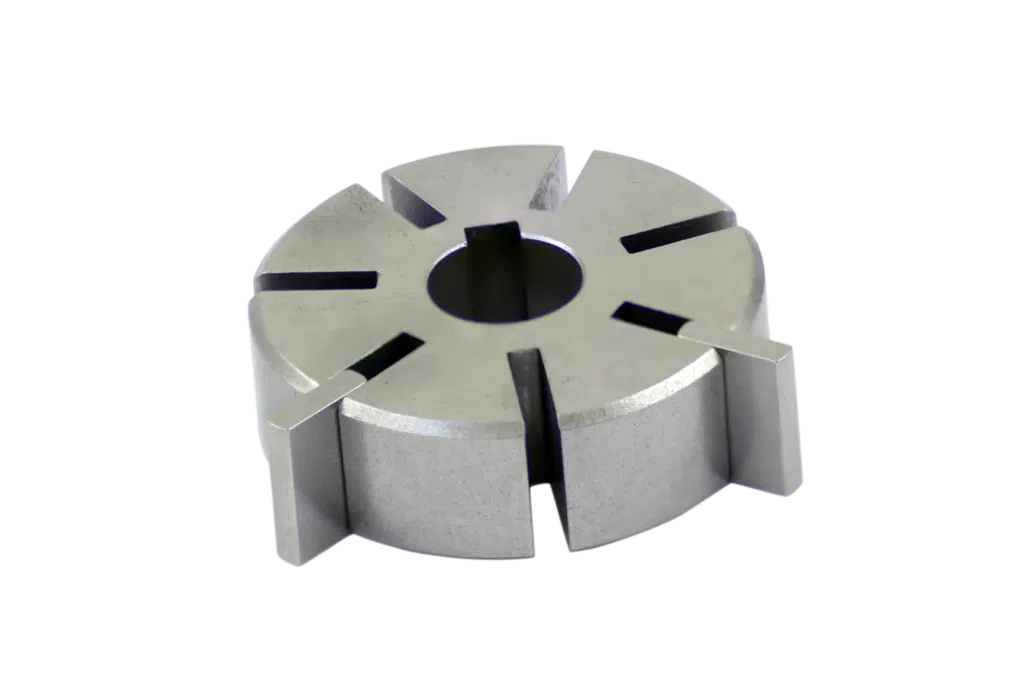

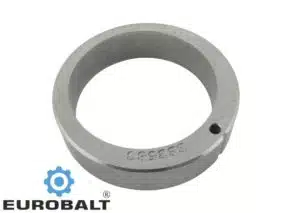

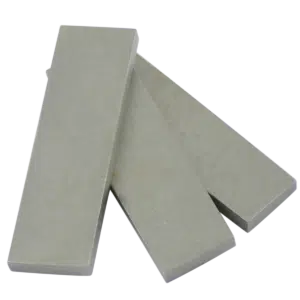

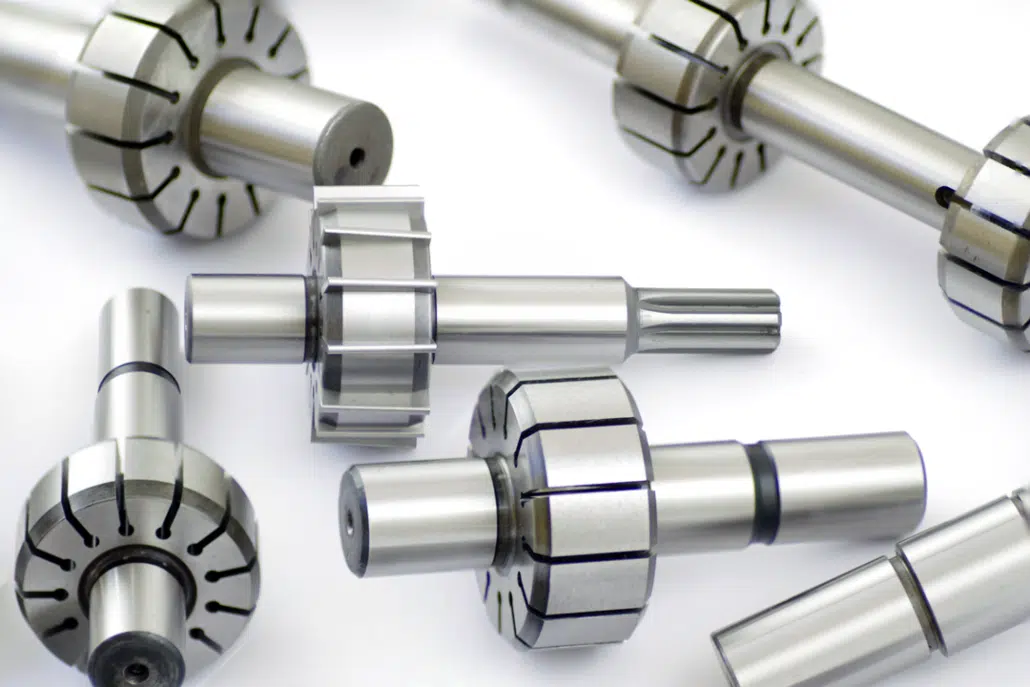

Eurobalt Engineering specializes in manufacturing metal components by using various technologies such as casting, powder metallurgy, CNC, etc. Our products are shipped to the countries across Europe, Asia, and the CIS. One of our major business areas is the production of parts for rotary vane pumps. We manufacture high quality components of rotary vane pumps which are pump housing, rotor, vanes and CAM rings, etc., according to our customer’s technical requirements. We use optimal production methods to produce complex, high precision and smooth surfaced components at a competitive price for batch production. Eurobalt has a good reputation of supplying product components due high quality and reliability. Our company offers a one stop solution for rotary vane pump components factory – we can produce and deliver all kinds of metal components of rotary vane pumps at different sizes.
